【選礦離心機-移動式振動料倉離心選礦車流程概述】

原料通過工程機械送入振動料倉，首先篩選出較大不合格的物料，減少滾筒篩磨損，提高工作效率，合格的物料通過料斗下部的振動給料機由上料輸送機均勻送入絞洗式滾筒篩內進行篩選分級為：粗料與細料兩種規格。其中粗料通過一條固定式淘金氈溜槽進行回收后，廢料排入廢料區域；

細料排入料箱內通過一臺沙泵打入選金離心機（沙金精選離心機,全自動排礦離心機,青州離心機廠家, 砂金離心機廠家）臥式全自動排礦離心機內進行精選，精選后的精料會自動排出至料箱內，廢料經由選金離心機排料管排出至廢料區域。

Technical process

The mineral mixture getting into vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder under vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:big size and small size.The mineral in big size recovering by fixed sluice to collet the gold,the scrap are getting rid;the mineral in small size are sending to horizontal auto discharge concentrator by sand pump to get gold concentrate and the scrap finally are getting ride to scrap area.

【選礦離心機-移動式振動料倉離心選礦車技術參數】

Detail parameter

大外型尺寸(含牽引桿)約：13*6.5*5.2米

The Max outlet size(including driving bar):13*6.5*5.2m

底盤長度約：11米，25#工字鋼

Length of base plate:11m,made of 25double T steel

輪胎：900-2#， 4軸16胎

Tyre：900-2#,4axles16tyres

機械支撐腿：6條

Mechanical holding frames:6pcs

振動料倉：長2米，寬度3米，偏心軸電機5.5KW，振動給料機電機：0.55KW

Vibrating feed hopper:Length 2m,width:3m,eccentric shaft motor5.5kw,Motor of shaking feeder:0.55kw

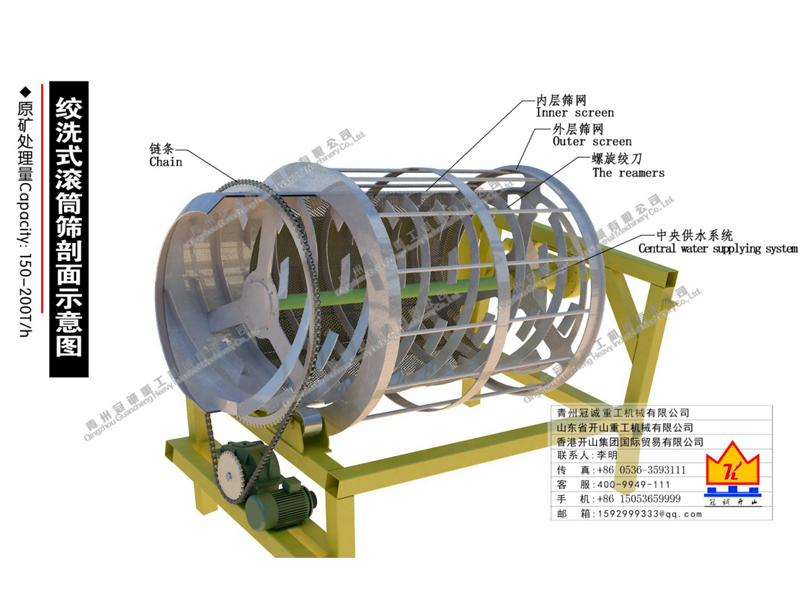

滾筒篩：內徑1.3米，外徑1.6米，凈篩網長度1.8米，絞洗長度2.5米，中央供水系統，電機7.5KW

Trommel screen:inner diameter 1.3m,outer diameter1.6m,screen mesh 1.8m,reamer trommel 2.5m,the central water supplying system,motor 7.5kw

上料輸送機：皮帶寬度0.6米，桿長約2.8米 電機：電動滾筒2.2KW

Feeding conveyor:belt width 0.6m,pole length2.8m,Motor:elctric roller 2.2kw

沙泵：4寸，電機15KW

Sand pump:4inch,motor 15kw

料倉容積：約2-5立方

Volume of vibrating feed hopper:about 2-5CBM

淘金氈溜槽：1*4米

Fixe gold sluice with carpet:1*4m
