移動式離心選礦車原礦處理量：50-100 t/h，離心機處理量(≤6mm)：15-30
移動式離心選礦車設備簡介Equipment Introduction
　　移動式離心選礦車為一體式移動離心選礦設備，原礦處理量每小時50-100噸(6mm以下物料離心機處理量15-30噸/時)，本套移動選礦設備結構設計緊湊、故障率低，其結構如下：
　　This set of equipment is integrated mobile centrifugal dressing equipment, raw ore processing capacity of 50-100 tons per hour (below 6mm material centrifuge processing capacity of 15-30 tons/hour), this set of mobile dressing equipment structure design compact, low failure rate, its structure is as follows:

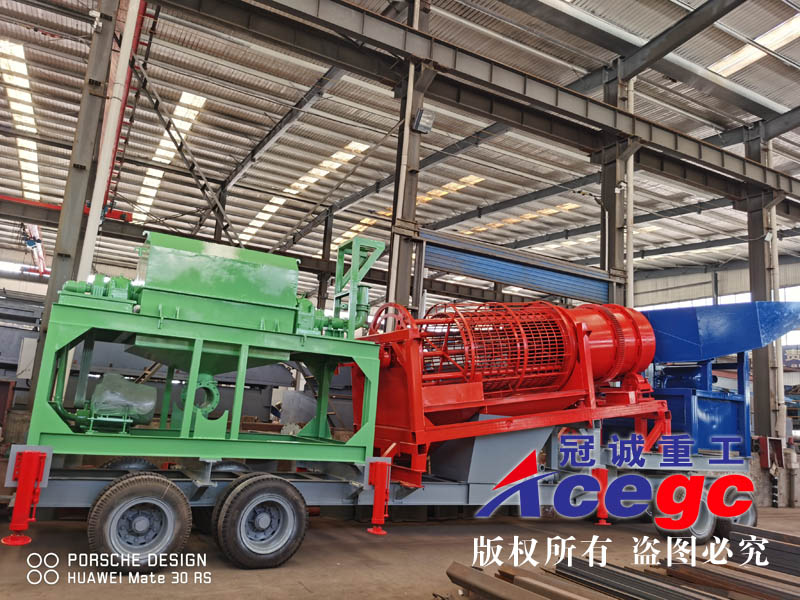

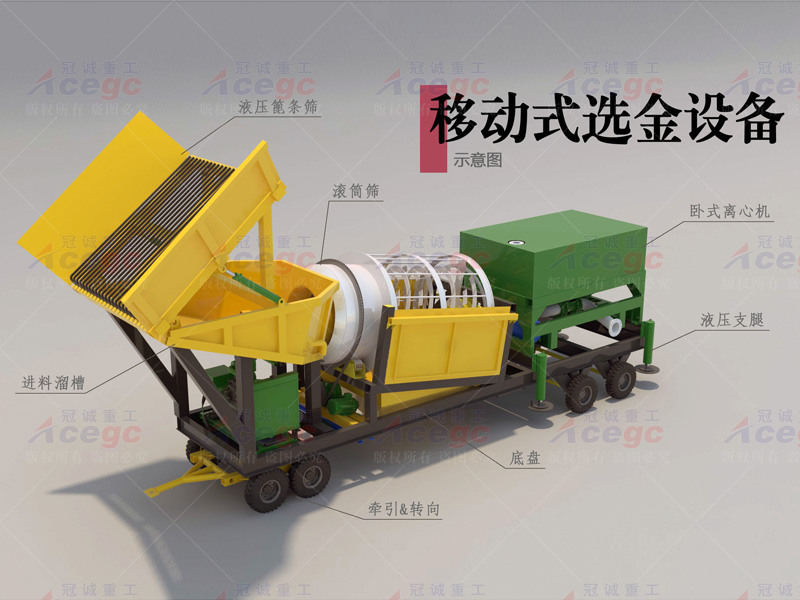

1、進料系統 Feeding system
進料系統為雙層結構，上層為液壓式可變角度篦條篩，下層采用大溜槽進料，采用高壓水反沖系統，可以保證均勻進料；
The feeding system is double layer structure, the upper layer is hydraulic variable Angle grate screen, the lower layer adopts big chute feeding, high pressure water recoil system, can ensure uniform feeding;
2、絞洗式篩分系統Wringing and washing screen system
滾筒篩動力采用鏈條驅動設計，動能傳遞均勻、傳遞效率高；
滾筒篩內含多條鉸刀從頭部覆蓋至尾部，能夠對物料進行充分絞洗脫泥，極大的提高了篩分與選礦作業效率；
滾筒篩供水系統采用中央供水+側供水方式，中央供水定向沖洗滾筒篩底部物料，側供水負責沖洗外層篩網。
Roller screen power using chain drive design, kinetic energy transfer uniform, high transfer efficiency;
The roller screen contains a number of reamers from the head to the tail cover, can fully wring and elution of the material, greatly improving the efficiency of screening and mineral processing operations;
The drum screen water supply system adopts the central water supply + side water supply mode, the central water supply is directed to flush the material at the bottom of the drum screen, and the side water supply is responsible for washing the outer screen.
3、選礦系統Beneficiation system

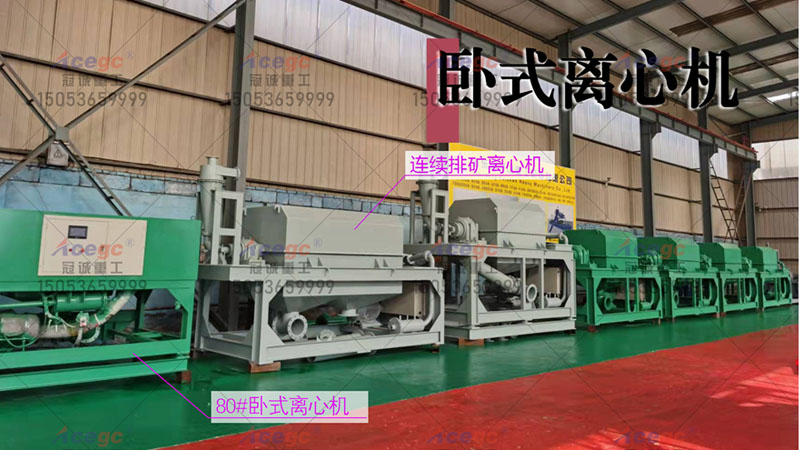

選礦系統采用臥式全自動排礦離心機進行選礦，保證使用壽命與回收率；
離心機采一臺80#臥式全自動排礦離心機，該機采用PLC電腦全自動控制，與立式離心機相比具有以下優勢：
Mineral processing system adopts horizontal automatic ore discharging centrifuge for mineral processing to ensure service life and recovery rate;
4、供水系統 Water supply system
本機自帶分水器，工作時只需要將進水管道連接至分水器即可開始正常工作。
The machine has its own water distributor, when working, only need to connect the water inlet pipe to the water distributor can start normal work.
5、移動系統 Mobile systems
移動系統部件由底盤與牽引轉向兩大部件組成，底盤采用25#工字鋼梁自主設計，保證設備強度，4軸8條實芯工程輪胎，4條液壓支腿支撐臥式全自動排礦離心機，可以使用裝載機等設備進行牽引，輕松移動至工作場地。
The moving system is composed of chassis and traction steering. The chassis adopts 25# I-beam independent design to ensure the strength of the equipment. The chassis adopts 8 solid core engineering tires with 4 shafts and 4 hydraulic legs to support horizontal automatic ore discharge centrifuges.
【流程概述】Technical process
原料通過工程車輛送入進料斗，首先篩分出較大不合格的物料，細料通過高壓水反沖均勻進入多鉸刀鏈條驅動式滾筒篩內，通過滾筒篩內多條鉸刀把成團粘泥絞散，中央供水管道永遠朝向下部對物料進行充分沖洗將粘泥沖走，然后篩分為6mm以上與6mm以下兩種規格。其中6mm以上物料排入一條固定溜槽進行大顆粒礦物提取回收后，廢料排入廢料區域，回收率達到90%以上；
6mm以下物料排入料箱內通過一臺沙泵打入臥式全自動排礦離心機內進行精選(沙泵供料能夠保證進料濃度在30%以下，并且對物料進行二次清洗，極大提高回收率)，小于6mm以下的礦物會在臥式自動排放離心機通過PLC電腦控制下自動排入精料箱內，廢料自動排出到廢料區域。
The raw material into feed hopper by excavator,then swilled by high pressure water into reamers trommel screen  and to be making the caly into mixture with water,the central water swilling and take the clay off, it to be classified into 2size＞6mm and ≤6mm,the material ＞6mm into one fixed sluice to get nugget,the scrap get rid into the scrap pool;
The material ≤6mm into horizontal automatic centrifuge concentrator by one set 4inch sand pump which can control the concentration below 30% and also the 2nd washing to mineral efficiently,finally the concentrate automatic discharged and scrap getting rid into scrap pool.

Part.3 移動式離心選礦車技術參數&報價清單Technical parameters & Quotation list

名稱 Name	規格 Specification		數量 Quantity	功率 Power	備注 Remark
底盤Chassis	寬度：1.8米，長7.3米 材質：25#工字鋼 含牽引&轉向系統 四軸8條實芯工程輪胎		1套	-
進料系統 Feeder System	大溜槽：2100X2800mm 材質：底板&側板Q235X10mm，外側槽鋼護邊； 液壓式篦條篩：2100X2200mm 材質：框架120X120方管，篦條：?30mm圓鋼 液壓油缸：2支		1套	-
滾筒篩 Rotary screen	絞洗式內徑1.3米，外徑1.6米，凈篩網長度1.8米 內含多條鉸刀從頭部覆蓋至尾部； 采用鏈條傳動； 電機功率：4KW		1套	4
臥式離心機 Horizontal centrifuge	80#臥式全自動排礦，PLC電腦控制 電機功率：5.5KW 空氣壓縮機：3KW		1套	8.5
離心式清水泵 Acting centrifugal fresh water pump			1臺	5.5	離心機專用 Centrifugal air compressor oil
沙泵Sand pump	離心機供料沙泵4寸沙泵+11KW電機		1套	11
固定溜槽Fixed chute	寬度1米，長2米		1套	-	含淘金氈Containing gold blanket
液壓支腿Ydraulic leg			4支	-
液壓站Hydraulic pressure station	5.5KW		1套	5.5
分水器Water knockout drum			1套	-	含機器內部供水管道 Including machine internal water supply pipe
配電箱Distribution box	開關品牌：德力西或正泰		1套	-	含電機線，不含電纜線Including motor line, excluding cable line
總裝機功率Total installed power	34.5KW（不含給水泵Do not include feed pump）
出廠價格 ex-factory price (稅前價格，不含運費，含稅+13%)(Price before tax, freight not included, tax +13%)	50HZ 380V	主設備Primary device：￥元 發電機組Generator set（100KW 玉柴）：  ￥元
	60HZ 230V	主設備Primary device：￥￥元
