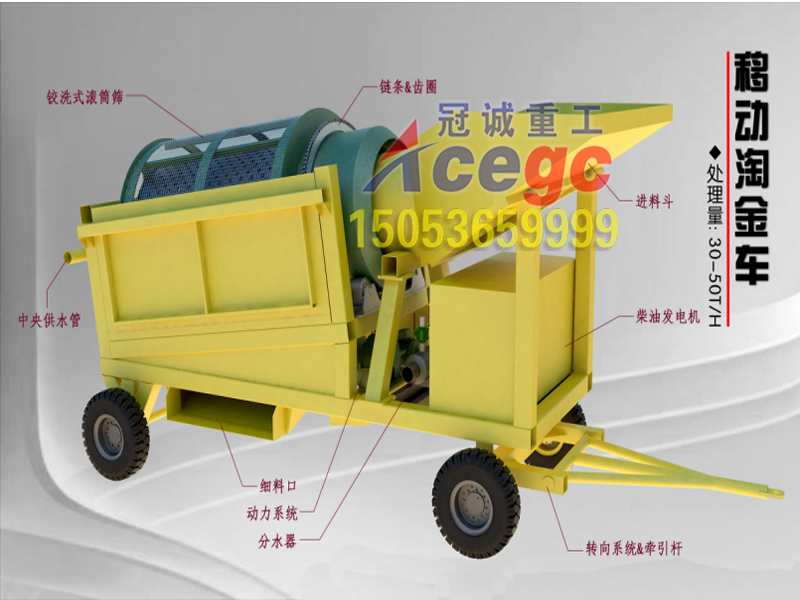

【小型移動淘金車簡介】

本套淘金設備為小型移動式淘金車，是青州冠誠重工機械有限公司獨立設計、研發制作，通過售后服務、用戶回訪等渠道不斷完善改進，現已經成為一種先進成熟的移動式淘金設備；
該 砂金機械,,砂金設備配置,沙金提取設備,砂金提取設備移動淘金車可以使用小型挖掘機、裝載機等多種上料方式，適用于沙金礦、巖金尾礦等大部分地選金場合。本套設備可以跟選金離心機,沙金離心機,沙金精選離心機,汞礦離心機,錫礦離心機,鎢礦離心機完美組合。

Brief introduction

This small mobile gold mining car is independently designed, researched and developed by us. It has become mobile advanced equipment through continuous improvement under customer good service, user feedbacks, return visits and other channels.
The mobile gold mining car can use a variety of small excavators, loaders and other feeding methods, suitable for the majority of gold ore, such as sand gold, rock gold tailings, etc.

【該移動淘金車特點】

1、上料方式可以使用小型挖掘機或裝載機等多種上料方式。
2、移動靈活方便：采用可轉向設計，可以原地180度轉向。
3、輪胎全部采用實心叉車胎，耐磨耐用。
4、滾筒篩內部增加了多條鉸刀，增加了約一倍物料篩選行程，極大的增加了鉸洗、篩分工作效率。
5、針對供水系統進行了優化：
    上料斗內部沖水負責首次沖洗物料并且推送物料進入滾筒篩內；
    滾筒篩中央沖水負責對物料進行主要的沖洗工作；
    滾筒篩側沖水負責沖洗滾筒篩外部細篩網，防止堵孔。
6、集成度高，本輛移動淘金車集成了鉸洗、篩分功能、分水器、柴油發電機于一體，只需要外接供水管道便 可正常工作。
7、擴展性強：可以附加砂金機械,,砂金設備配置,沙金提取設備,砂金提取設備振動溜槽/鼓動溜槽、選金離心機,沙金離心機,沙金精選離心機,汞礦離心機,錫礦離心機,鎢礦離心機等設備提高回收率。

Features
1, the feeding method can use a small excavator or loader and other means of feeding.
2, flexible and easy to use: the use of steering design can be turned 180 degrees.
3, tires are all solid fork tires, wear-resistant and durable.
4, the roller screen increases the number of internal reamer, an increase of about twice the material screening stroke, greatly increased the hinge washing, screening efficiency.
5, for the water supply system optimization:
The internal flushing of the hopper is responsible for the first flushing of the material and the pushing of the material into the drum screen;
The drum screen is responsible for the main flushing of the material;
Side of the drum screen flush responsible for washing of the external sieve drum fine screen, to prevent plugging holes.
6, a high degree of integration, the mobile gold car integrated hinge washing, screening function, water separator, and diesel generator in one, only the external water supply pipe can work properly.
7, the strong expansion: can be attached to the vibration chute / agitating chute, centrifuges and other equipments to improve the recovery rate.

【技術參數】

處 理 量：  30-50噸/小時
上料方式：  建議使用小型挖掘機
用電功率：  2.2Kw
水    泵：  7.5Kw
耗 水 量：  50m3/h
發 電 機：  柴油發電機20Kw
小轉彎半徑： 3.9米
選  礦 篩：  內徑1米，外徑1.3米，凈篩網長度1.5米
輪    胎：  4條實心輪胎

Technical parameter
Technical parameter:
Processing capacity 30-50 tons / hour
Feeding way it is recommended to use small excavators
Power consumption 2.2Kw
Pump 7.5Kw
Water consumption 50m3/h
Generator: diesel generator 20Kw
Wash screen internal diameter of 1 meter, external diameter of 1.3 meters, net screen length of 1.5 meters
Tires 4 solid tires
Minimum turning radius 3.9 M
