以下為選金離心機,沙金離心機,沙金精選離心機,汞礦離心機,錫礦離心機,鎢礦離心機在金礦選礦中的具體應用。
【砂金設備流程概述】

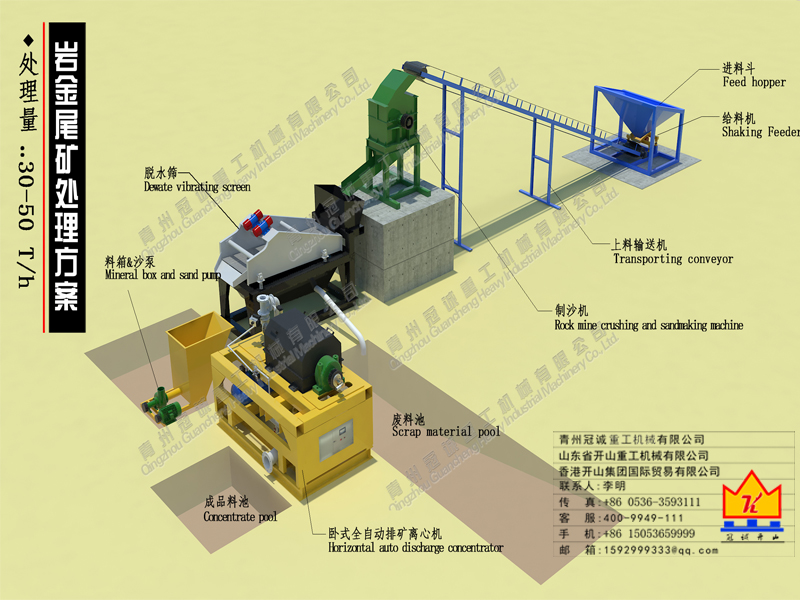

原料通過工程車輛送入進料斗，通過振動給料機均勻把料送入上料輸送機，通過輸送機送入制沙機內進行破碎，破碎后的物料進入一臺脫水篩脫水篩進入脫水，之后排入料箱內由沙泵打入沙金選礦設備一臺臥式全自動排礦離心機內進行精選，精選出的精料會自動排出至成品料池內，廢料自動排入廢料池。
Technical process
The raw material getting into feed hopper then well distributed with shaking feeder to be transported by conveyor into specialized rock mine crushing and sandmaking machine to be crushed,then material into dewater vibrating screen to get rid of unclean water then to be send to horizontal auto discharge concentrator by sand pump to get concentrate.
【砂金設備配置技術參數(shù)】
Detail parameter
|
Production Name
|
規(guī)格 Specification
|
數(shù)量 Quantity
|
功率 Power
|
備注 Remark
|
|
進料斗 Feed hopper |
2000*3000mm |
1 set |
0.55 |
包含一臺振動給料機 Including shaking feeder |
|
上料輸送機 Transporting conveyor |
皮帶寬度600mm Belt width600mm |
1pcs |
5.5 |
|
|
巖金礦專用制沙機 Rock mine crushing and sandmaking machine |
600*800mm 37kw電機 |
1set |
37 |
錘式破碎機 Hammer crusher
|
|
制沙機底座 Base plate of rock mine crushing and sandmaking machine |
|
1pcs |
- |
|
|
脫水篩 Dewater vibrating screen |
|
1set |
1.5 |
|
|
料箱&沙泵 Mineral box and sand pump |
4inch |
1set |
15 |
|
|
離心機 Gold concentrator |
80#horizontal auto discharge type |
1set |
10.5 |
PLC自動控制 PLC control
|
|
離心泵 Centrifugal pump |
|
1set |
5.5 |
|
|
配電箱 Electric box |
|
1set |
- |
|
|
總功率 Total power |
75.55KW |
|||
【沙金提取設備,砂金提取設備操作說明】
一、開關機：
1、開啟順序：離心機——沙泵——脫水篩——制沙機——上料輸送機——進料斗給料機
2、關機順序：進料斗給料機——上料輸送機——制沙機——脫水篩——沙泵——離心機
Operation instruction
- Turn on:Horizontal auto discharge concentrator-sand pump-dewater vibrating screen-rock mine crushing and sandmaking machine-transporting conveyor-shaking feeder
- Turn off：Shaking feeder——transporting conveyor——rock mine crushing and sandmaking machine ——dewater vibrating screen——sand pump——Horizontal auto discharge concentrator
